產品詳細：

連接金具 link fitting

在架空電力線路和變電所中連接金具的作用：一是用連接金具將懸式絕緣子組成串懸掛在桿塔上，二式用連接金具將直桿塔用的懸垂線夾或非直線桿塔用的耐張線夾與絕緣子串聯起來；其他如拉線桿塔的接線金具與桿塔的錨固，也都要用連接金具。

連接金具主要用于架空電力線路或變電所，將導線或避雷線耐張線夾絕緣子通過連接金具相連接、避雷線線夾與桿塔相連接。按安裝條件的不同，分專用鏈接金具和通用連接金具兩類。專用鏈接金具指與絕緣子相連接的球頭掛環合碗頭掛板。通用連接金具適用各種情況，按荷重噸位分級，荷重相同的同類金具具有互換性，荷重相同、不同種類的鏈接金具具有互換性。

產品型號中字母掛板數字的意義為：

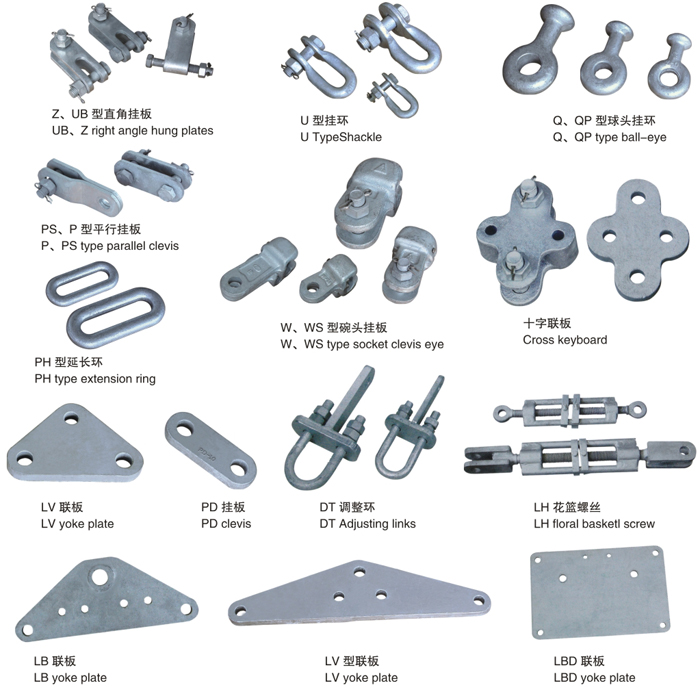

Q-球頭掛環 P-平面（平行）接觸 W-碗頭 S-雙聯 U-U型 L-聯板、拉桿、菱形 Z-直角 Y-延長 B-板 T-調整

Link fitting are used to link clamps to insulator ,or to link insulator and ground wire clamp to tower arms or subjection structures link fitting have special type and commom type in accordance with mounting condition.the special type includes the ball-eye and socket-clevis linking with insulator the commom type is usually pin connected type they have different grades in according to the load and are exchangeable for the same grade.

the meanings of letter & arabic figure in the catalog are show as follow

Q-ball eye P-plane parallel W-socket clevis S-double U-Utype L-yoke plan tension rod rhomb Z-90angle Y-extendion

1、聯板

Yoke Plates

熱鍍鋅鋼制件

             hot-dip galvanized steel
